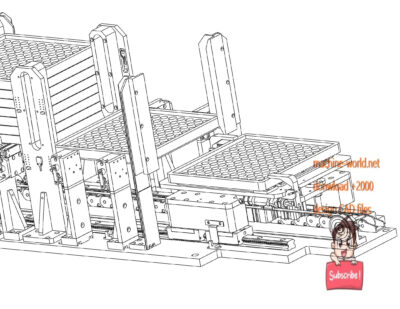

industrial 3D model Tray loading mechanism

    $50

    This is industrial 3D model Tray loading mechanism The tray loading mechanism is mainly used to lift and transfer the Tray. A full stack of trays is placed in the loading position and automatically lifted, empty trays are moved horizontally for retrieval, automatically lowered and removed from the discharge port. Including synchronous wheel, synchronous belt, stepper motor, ball screw, cylinder, linear slide rail, linear bearing, sensor and other parts.

    Industrial use: Equipment

    Design software: SolidWorks 2018

    file format: step(stp)
