industrial 3D model The gap sealer

This is industrial 3D model The gap sealer. Slot-type gluing machine adopts servo drive for Y and Z axis, and is controlled by Weilun touch screen integrated machine.

2. The glue output is uniform and adjustable. The slotted glue nozzle is made of stainless steel with a surface roughness of 0.4.It is equipped with 0.1mm and 0.2mm clearances for testing. Glue output control. Can adjust the glue nozzle with local slot. Size of glue output.

3. Glue coating range is for glass under 210x210mm.

4. Slot-type sealer adopts differential head design, top and bottom height adjustable for precise control of clearance with glass and adjustment of parallelism with glass.

5. The slot-type adhesive head can be quickly disassembled, convenient for cleaning the glue and replacing the gaps 6.

The Y-axis uses a visceral cap design to prevent the glue from seeping into the guide rail and screw rod 7.

The display screen has automatic monitoring screen, alarm screen, easy to set parameters and view information,

8. Modular assembly process, each main part and main position can be disassembled separately, accidently damaged parts can be replaced quickly 9.

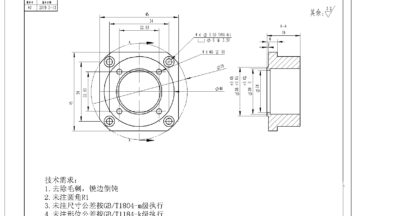

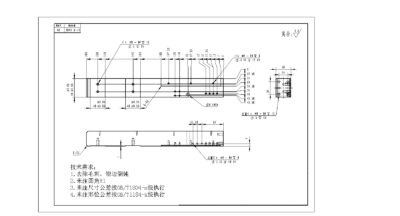

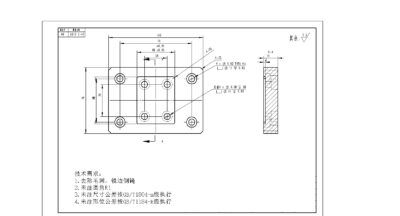

Many units have been overhauled production, with drawings attached

Industrial use: Mechanical Equipment Innovative Design

3D model Design software: SolidWorks

3D model Version/edit:2018 [editable, with parameters]

3D model File format:Sldprt Sldasm SLDDRW
