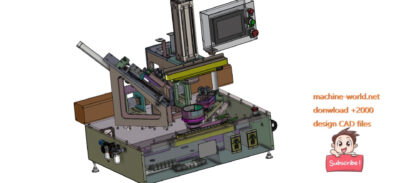

industrial 3D model Glue applicator


    This is industrial 3D model Glue applicator

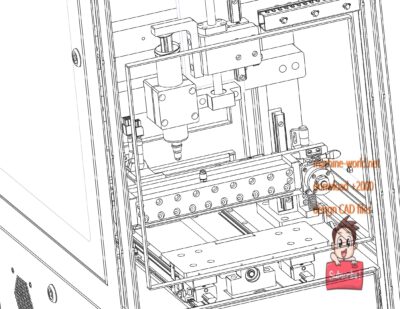

    1. The slot type gluing machine uses servo drives for the Y axis and Z axis, and is controlled by the machine with a built-in touch screen.

    2. The glue output is even and adjustable. The slotted glue nozzle is made of stainless steel with a surface roughness of 0.4. It is equipped with 0.1mm and 0.2mm gaps to control the glue output. Local slotted glue nozzle can be adjusted. Size of glue output.

    3. Glue coverage is for glass with dimensions under 210x210mm.

    4. The gap-type sealing head uses a differential head design, which can be adjusted in upper and lower heights to precisely control the gap with the glass and adjust the parallelism with the glass.

    5. The slot type adhesive head can be quickly removed, convenient for cleaning the glue and replacing the gaps

    6. The Y axis uses an internal cover design to prevent glue from seeping into the guide rail and screw

    7. The display screen has automatic monitoring screen, alarm screen, easy to set parameters and view information,

    8. Modular assembly process, each main part and main position can be disassembled separately, accidental damaged parts can be quickly replaced

    Industrial use: Mechanical Equipment

    Design software: SolidWorks 2018

    file format:Sldprt Sldasm
