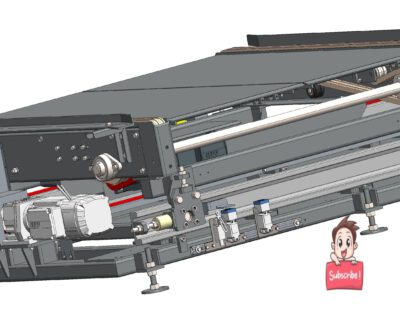

industrial 3D model transporting pallet conveyor

    $50

    This is industrial 3D model transporting pallet conveyor This conveyor is often used in non-standard automation equipment lines to transport racks and precision fixtures. This conveyor has multiple functions and can transport racks of different sizes. There are guiding and positioning structures at the front and rear ends of the conveyor. It uses a Double Belt designed with wear-resistant material. The guide bar in between the two belts is used to precisely guide the carrier into the chain body. This conveyor can be made into a module standardized and can be changed into models with different sizes and specifications according to different needs of customers. This conveyor motor is a conventional conveying speed regulation motor.

    Industrial use: Equipment

    Design software: SolidWorks 2020

    file format: step(stp)
