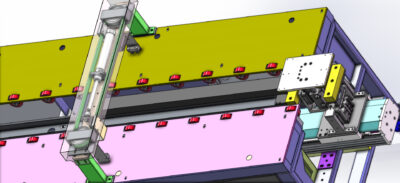

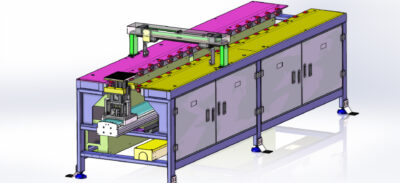

industrial 3D model Sheet metal centering puller


    This is industrial 3D model of sheet metal centering traction mechanism, the traction mechanism uses servo motor + module, the center mechanism uses cylinder + synchronous belt, clamping mechanism uses lifting cylinder + magnet power, the gap specifications are adjustable, the structure is simple and it is widely used.In the furniture and sheet metal manufacturing industry
    Industry use: Equipment
    3D model Design software: SolidWorks
    3D model Version/edit:2019 [editable, with parameters]
    3D model File format: Sldprt Sldasm
