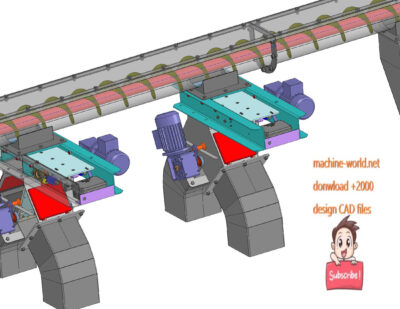

industrial 3D model screw conveyor
$80
This is industrial 3D model screw conveyor Screw conveyors are divided into two types: screw conveyors and shaftless screw conveyors. Screw conveyors are suitable for non-sticky dry powder materials and small granular materials (e.g. cement, fly ash, lime, grains, etc.) while shaftless screw conveyors are suitable for conveying Move sticky and tangled materials. (For example: sludge, biomass, waste…) The working principle of the screw conveyor is that the rotating spiral blades push the materials to transport the screw conveyor, the force prevents the materials from rotating along with the screw conveyor. The screw conveyor blades are the weight force of the material and the friction resistance of the screw conveyor shell with the material. The spiral blades are welded on the rotating shaft of the screw conveyor. Blade surface types include solid surface type, belt surface type, blade surface type and others according to different materials transported transfer. The screw shaft of the screw conveyor has a thrust bearing at the end of the material’s movement direction to provide axial reaction force for the screw shaft with the material. When the machine length is long, an intermediate suspension bearing should be installed.
Industrial use: Equipment
Design software: SolidWorks 2017
file format:step(stp) Sldprt Sldasm
This is industrial 3D model screw conveyor Screw conveyors are divided into two types: screw conveyors and shaftless screw conveyors. Screw conveyors are suitable for non-sticky dry powder materials and small granular materials (e.g. cement, fly ash, lime, grains, etc.) while shaftless screw conveyors are suitable for conveying Move sticky and tangled materials. (For example: sludge, biomass, waste…) The working principle of the screw conveyor is that the rotating spiral blades push the materials to transport the screw conveyor, the force prevents the materials from rotating along with the screw conveyor. The screw conveyor blades are the weight force of the material and the friction resistance of the screw conveyor shell with the material. The spiral blades are welded on the rotating shaft of the screw conveyor. Blade surface types include solid surface type, belt surface type, blade surface type and others according to different materials transported transfer. The screw shaft of the screw conveyor has a thrust bearing at the end of the material’s movement direction to provide axial reaction force for the screw shaft with the material. When the machine length is long, an intermediate suspension bearing should be installed.
Industrial use: Equipment
Design software: SolidWorks 2017
file format:step(stp) Sldprt Sldasm
