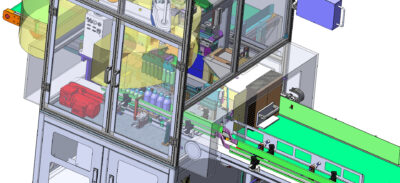

industrial 3D model Opening and packing medicine bottles equipment

    $150

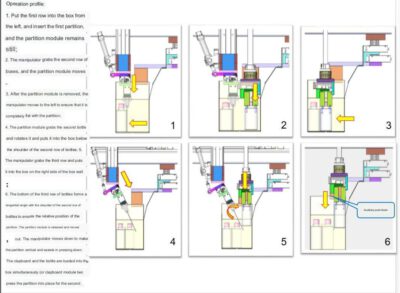

    Summary of operation of industrial 3D model Opening and packing medicine bottles equipment: 1. The first row is placed into the box from the left and the first partition is inserted, and the partition module remains stationary; 2. Manipulator takes second row to pack, Remove partition module 3. After removing the partition module, the operator moves to the left to ensure that it is completely flat with the partition 4. Module partition take the second bottle and rotate it into the box below the second row of bottles 5. The operator grabs the third row on the right side of the box and places it in the box 6. The bottom of the third row of bottles forms a tangent angle to the shoulders of the second row of bottles to ensure the relative position of the baffle Move out, the operator moves down to make the baffle vertical , which also supports pressing down on the baffle and loading the bottle into the box (or the baffle module presses down on the partition twice to set it in place).
    Industry use:Equipment
    3D model Design software: SolidWorks
    3D model Version/edit:2017
    3D model file format:Sldprt Sldasm x_t
