industrial 3D model Dryer

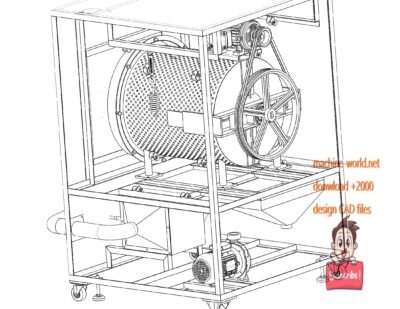

    This is industrial 3D model Dryer The dryer is mainly composed of an induced draft fan, breaking device, belt feeder, feeder, rotating drum, heat source, belt discharger, unloader and power distribution cabinet. Therefore, the working area of ​​the dryer includes the discharge area, tilting plate area, cleaning area and material conveying area.

    Industrial use: Equipment

    Design software: SolidWorks 2012

    file format: step(stp) Sldprt Sldasm
