industrial 3D model Bearing assembly machine

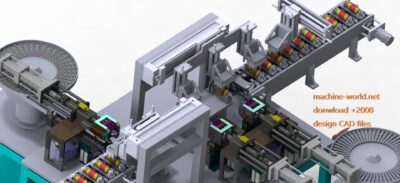

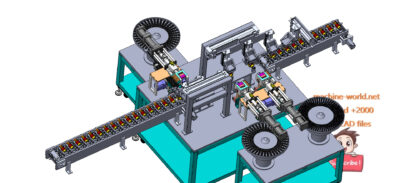

    This device is an industrial 3D model automatic assembly device for the rotor pressure bearing and gear pressure bearing of micro motor.The device does not only make precision parts. assembly has also been achieved, the manual operation is simple and convenient, and the structure design is simplified, which can effectively guarantee the accuracy and efficiency of product assembly! Feeding is direct vibrating and vibrating plate, clamping cylinder and processing controller are completed by servo motor, and the whole equipment is fully automatic for assembly line operation. This equipment is mainly includes the following parts: ①Rotor feeder conveyor chain parts (supplied by the customer); ② Rotor press bearing station 1; ③ Bearing loading unit (press bearing station 1); ④ Rotor press bearing tool (press bearing station 1); ⑤ Rotor shaft shift 1; ⑥ Bearing feeder (press bearing station ⑦Rotor bearing station 2; ⑧rotor presser gear; ⑨gear load unit; rotor bearing & gear tool; Rotor presser bearing motor / mounting machine gear press automatic press assembly, precision motor bearing gear press assembly machine
    Industry use: Equipment
    3D model Design software: SolidWorks
    3D model Version/edit:sw2014 file:Sldprt Sldasm
