industrial 3D model automobile gearbox covers assembly machine

    $150

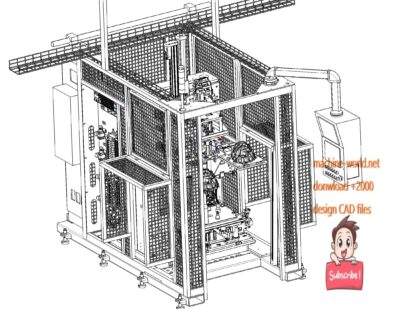

    This is industrial 3D model automobile gearbox covers assembly machine This drawing is a drawing of the actual production project, automatic box closing device of the automobile transmission housing, the upper part is the press mounting part, using servo motor + screw to control the press mounting mechanism Press the top to press down on the housing and the press mounting mechanism adopts multiple sets of locking cylinders plus pressure sensors. The lower part is the housing positioning tray assembly and the corresponding positioning mechanism installed on the corresponding housing.

    Industrial use: Mechanical equipment

    Design software: SolidWorks 2022

    file format:Sldprt Sldasm
