industrial 3D model Automatic notebook C piece size testing machine
$150

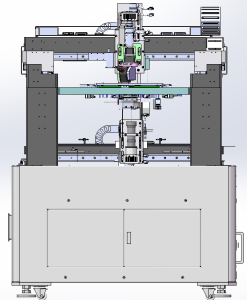

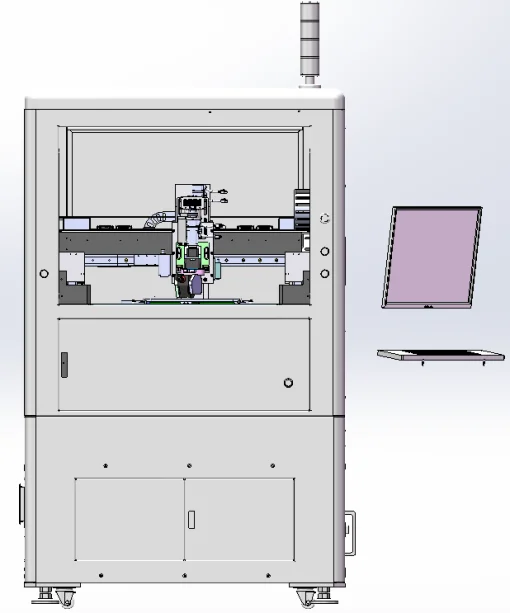

industrial 3D model Automatic notebook C piece size testing machine. This device is used to detect the size of the C sections of the notebook.
The upper and lower double truss mechanism layout is adopted, and the two sides of the product are measured by dividing.
CCD system and laser system are selected as the measurement source;
Industry use: Mechanical equipment Digital electronics
3D model Design software: SolidWorks
3D model Version/edit:2017 [editable, with parameters]
3D model file format:step (stp) Sldprt Sldasm SLDDRW
industrial 3D model Automatic notebook C piece size testing machine. This device is used to detect the size of the C sections of the notebook.
The upper and lower double truss mechanism layout is adopted, and the two sides of the product are measured by dividing.
CCD system and laser system are selected as the measurement source;
Industry use: Mechanical equipment Digital electronics
3D model Design software: SolidWorks
3D model Version/edit:2017 [editable, with parameters]
3D model file format:step (stp) Sldprt Sldasm SLDDRW
