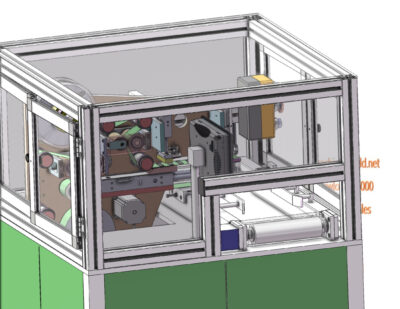

industrial 3D model Automatic labeling machine fixed mold removal module

industrial 3D model Automatic labeling machine fixed mold removal module 10 pieces per minute/min, the size of the label is 203020 in length, width and height, and the product sale scale can be adjusted accordingly. Use standard parts from the past and now on the market to modify and redesign the machine to suit the customer. This device is a label stripping module of the film that rolls through a fixed die, and is then sucked by a suction cup and movable cylinder to apply the label to the product. 1. The motor drives the rotary axis and the rotary axis drives the film to rotate. Use film for retraction and release, tension control and film feeding ; press down to label ; of adhesive film; Industry use:Equipment

3D model Design software: SolidWorks

3D model Version/edit: SW2016 3D model file format:step(stp) iges(igs) Sldprt Sldasm
