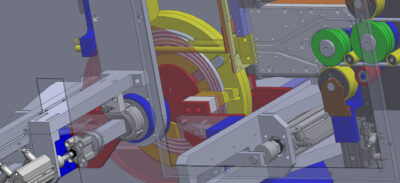

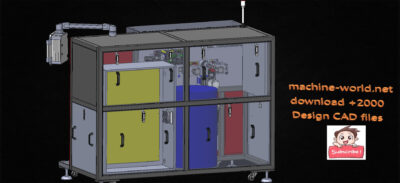

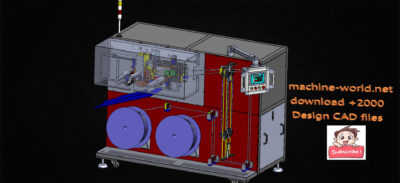

industrial 3D model Automatic conduit welding machine


    industrial 3D model Automatic conduit welding machine is used for automatic pipe welding, taking the aforementioned short and long round tubes and winding them side by side. When two tubes are wound side by side, one end is aligned and the other reflects the length state. When two tubes are wound, they are wound side by side on a surface to form a flat shape. After winding, through high frequency, the two positions of the whole spool are spot welded, so that the whole spool is fixed and firmly adhered. The adhesive part is guaranteed not to be loose, tearing by hand can also be torn
    Industry use: Mechanical equipment Medical equipment
    3D model Design software: SolidWorks
    3D model Version/edit:SolidWorks2018 [editable, including parameters]
    3D model file format:step (stp) Sldprt Sldasm SLDDRW
