industrial 3D model Two way mechanical clamp
$50

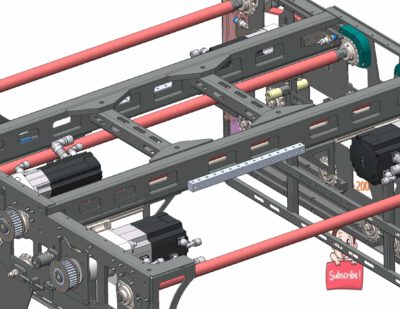

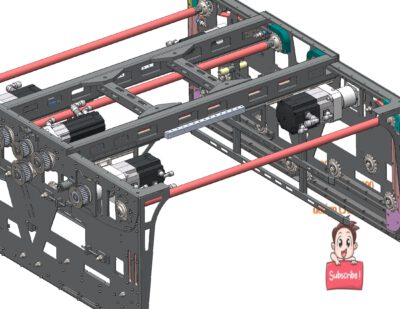

This is industrial 3D model Two way mechanical clamp The picker uses a servo motor through the synchronous wheel, the synchronous belt is connected to the two-way screw bar, on the screw bar there are screw bar modules in two directions, when the screw bar rotates, the nut moves in opposite directions. . A corresponding clamping tool is installed on the nut to realize a single, two-way driving clamping action.
Industrial use: Equipment
Design software: SolidWorks 2020
file format: x_t
This is industrial 3D model Two way mechanical clamp The picker uses a servo motor through the synchronous wheel, the synchronous belt is connected to the two-way screw bar, on the screw bar there are screw bar modules in two directions, when the screw bar rotates, the nut moves in opposite directions. . A corresponding clamping tool is installed on the nut to realize a single, two-way driving clamping action.
Industrial use: Equipment
Design software: SolidWorks 2020
file format: x_t
