industrial 3D model Pallet conveyor

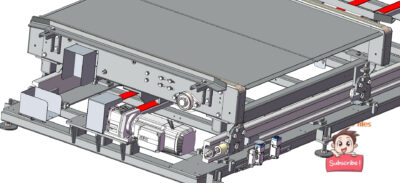

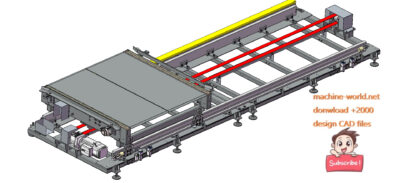

industrial 3D model Conveyor belts are commonly used in non-standard automation equipment lines to convey precision bearing fixtures. This conveyor has multiple functions and can transport different sized carriers. There are guiding and positioning mechanisms at the front and rear ends of the conveyor belt. Double belt wear-resistant material design, the guide bar in the middle of the two belts is the precision of guiding the carrier into the body of the chain. , this conveyor belt can be used as a standardized module and can be changed into models of different sizes and specifications according to the different needs of customers. It is a conventional conveying speed regulating motor.
Industry use:Equipment
3D model Design software: SolidWorks
3D model Version/edit: sw2020 [editable, no parameters]
3D model file format: step(stp)
