industrial 3D model Non-standard automatic CNC bending machine

    $150

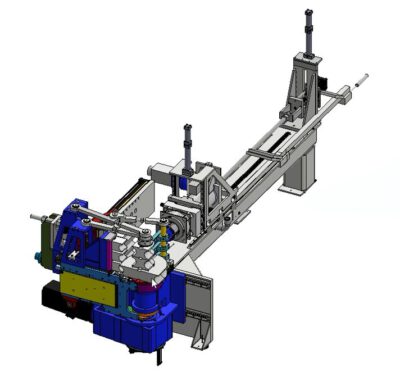

    industrial 3D model Non-standard automatic CNC bending machine, ProE5.0 document without parameters can be edited, file +step. Assembly drawing file: 91163.asm.
    CNC bending machine consists of nine parts including body, torsion shaft, slider, stroke adjustment, front support frame, mold, hydraulic system and electrical system.
    Sliding part: Hydraulic transmission is used, and the sliding part consists of a slider, an oil cylinder and a fine-tuned structure of a mechanical stopper. The left and right oil cylinders are fixed on the frame, and the piston (rod) drives the slider to move up and down by hydraulic pressure, and the mechanical stop is controlled by the numerical control system. to adjust the value. Working table part: it is operated by button box, so that the motor drives the stopper to move the material back and forth, and the traveling distance is controlled by numerical control system.
    Industry use: Equipment
    3D model Design software: ProE Creo.Elements
    3D model Version/edit:
    3D model file format:step (stp) Asm Prt
