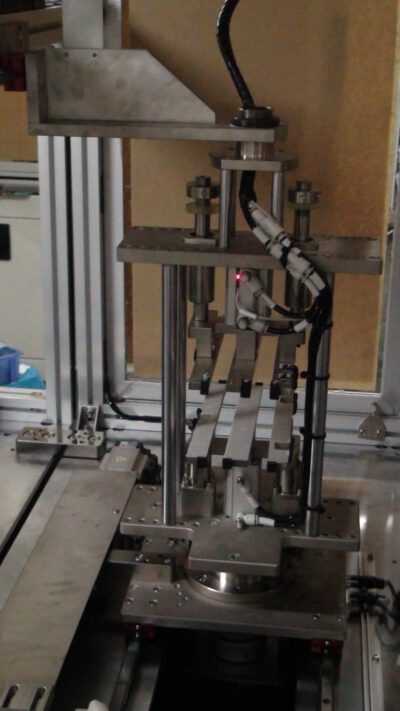

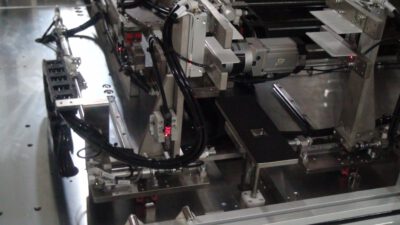

This is industrial 3D model Lithium battery rolling machine This equipment is a power battery stacker, used to produce automobile lithium batteries and key equipment for power batteries. The equipment can perform a series of operations such as automatic Z-forming of square material of a certain size with tabs, automatic film winding, edge gluing and unloading, etc. This type is a film thermal cutting machine with a tail winding acceleration mechanism. The equipment is stable and perfect, thousands of units have been mass produced. Up to now, it has developed many different functions and designs to achieve high-speed full automation, which is a very high level in the lithium battery equipment industry, many mechanisms are intelligently designed and run stable.
Industrial use: Equipment
Design software: SolidWorks 2014
file format:Sldprt Sldasm
