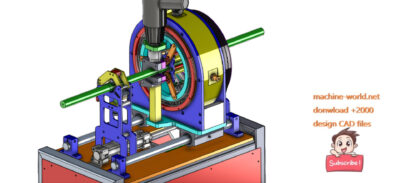

industrial 3D model Fully automatic CNC pipe bending machine
$50
industrial 3D model Fully automatic CNC pipe bending machine. The device is driven by a motor through the reducer, and the belt pulley is driven by the V-belt to complete the pipe bending action. The feeding mechanism is completed by a cylinder, and the two ends of the pipe are fixed respectively by fixing the seat clamp.This model is simple and practical.
3D model Design software: SolidWorks
3D model Version/edit:2016 [editable, no parameters]
3D model file format:step(stp) Sldprt Sldasm
industrial 3D model Fully automatic CNC pipe bending machine. The device is driven by a motor through the reducer, and the belt pulley is driven by the V-belt to complete the pipe bending action. The feeding mechanism is completed by a cylinder, and the two ends of the pipe are fixed respectively by fixing the seat clamp.This model is simple and practical.
3D model Design software: SolidWorks
3D model Version/edit:2016 [editable, no parameters]
3D model file format:step(stp) Sldprt Sldasm
