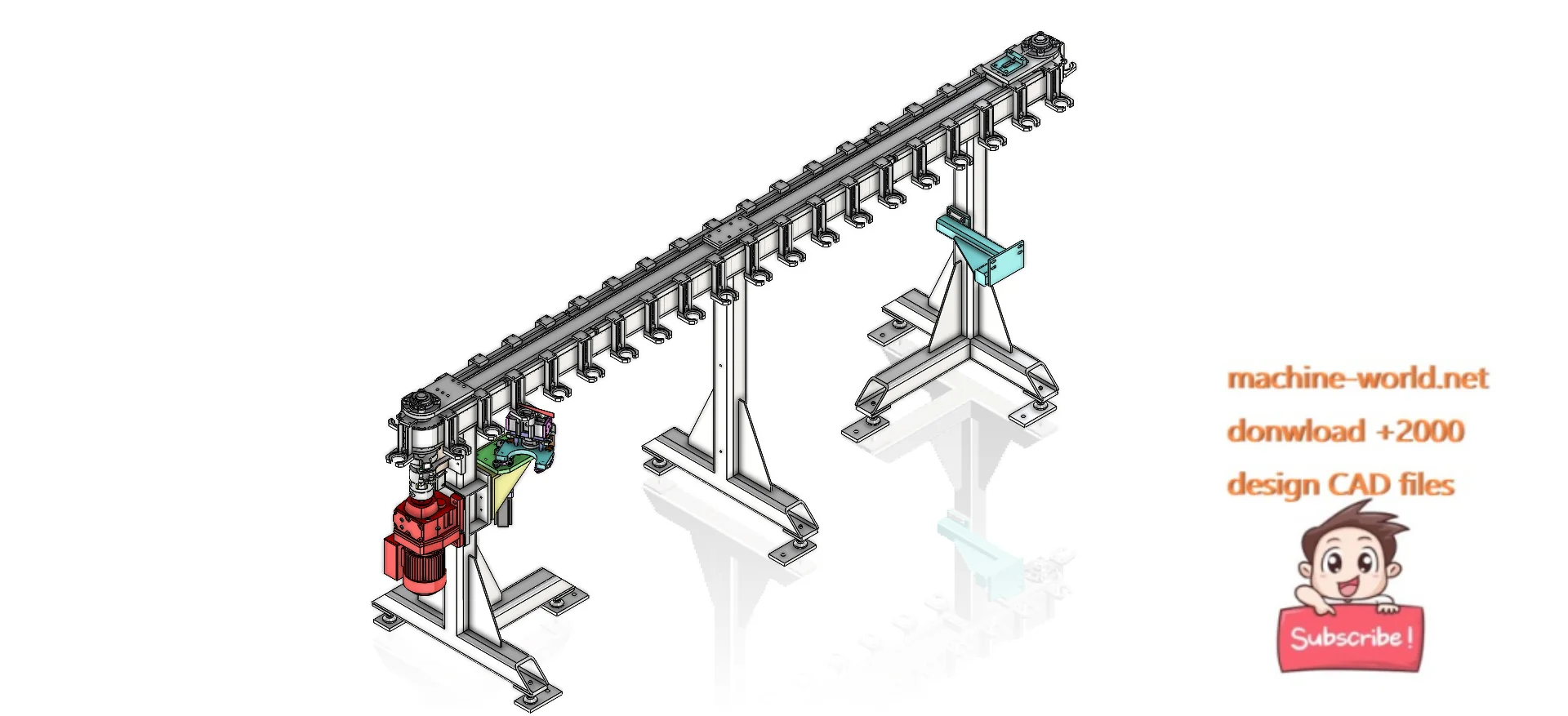

industrial 3D model Electric motor assembly rotary hanging conveyor

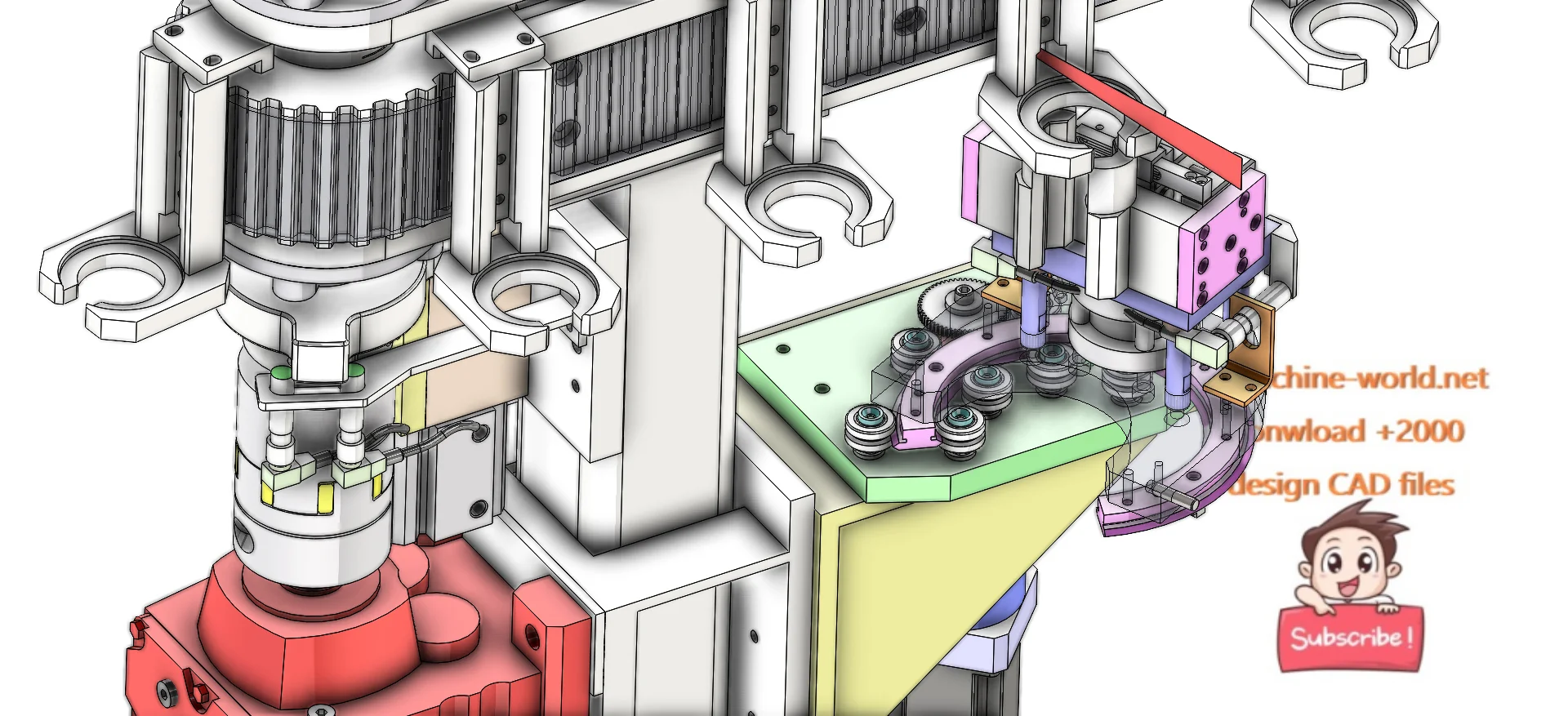

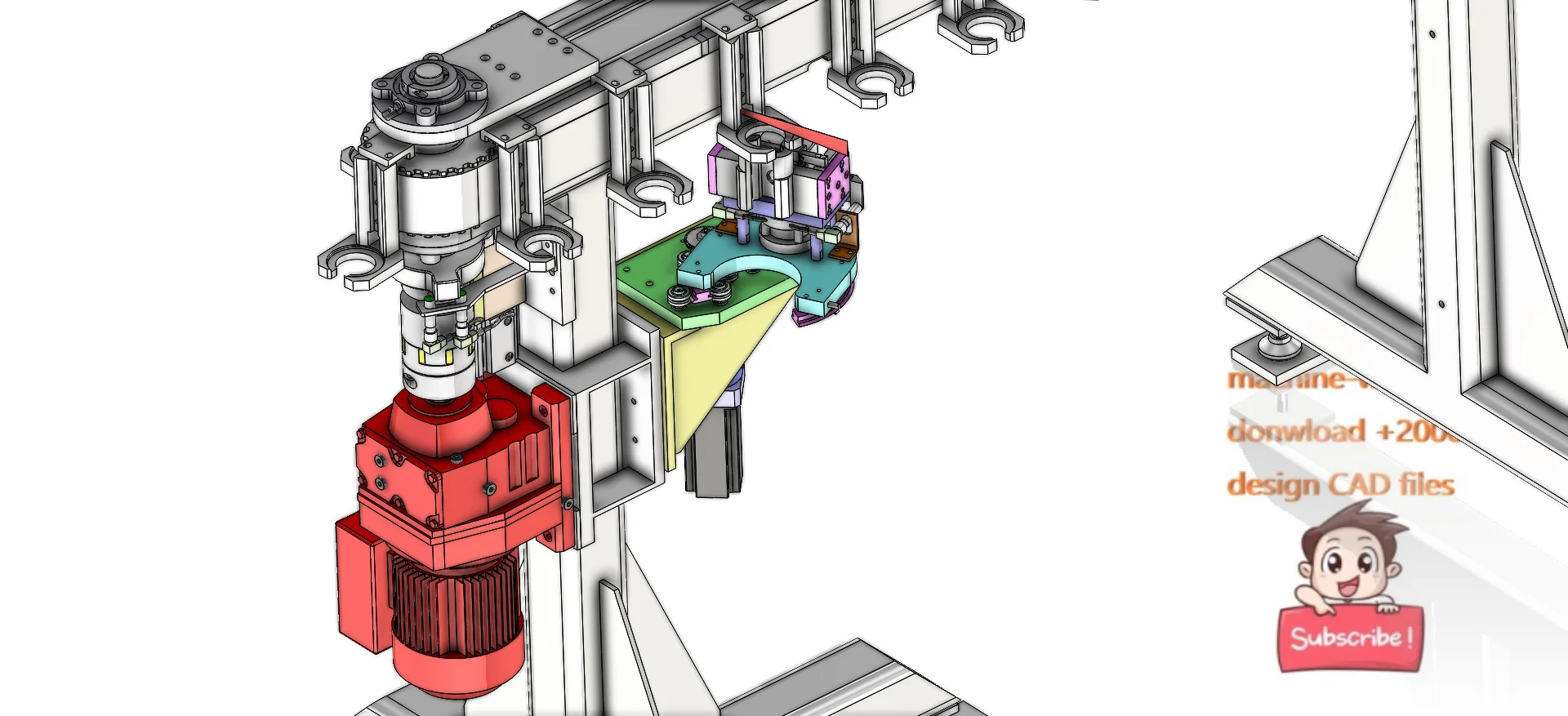

    This is industrial 3D model of electric motor assembly equipment, mainly using rotary transmission station, this design can work continuously at multiple stations at the same time, rotary assembly station can effectively detect the position of workpiece and perform show correctly. The model structure includes: pulling unit, bearing unit, actuator, tensioning device, diverting device and supporting part, etc. Traction units are used to transmit traction, and can use conveyors, traction chains or ropes; load-bearing parts used to hold the material, such as hoppers, racks or spreaders, etc.; Brakes (stoppers) and other parts; tensioning device generally has two types, screw type and heavy hammer type, which can maintain a certain tension and deflection of the pulling elements to ensure the normal operation of the conveyor belt; supports used to support pulling or loading components Components, rollers, rollers, etc. can be used. Industry use: Equipment
    3D model Design software: SolidWorks
    3D model Version/edit:
    3D model file format:step(stp) Sldprt Sldasm
