industrial 3D model Double sided tape machine

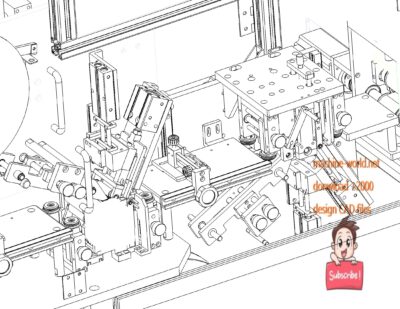

This is industrial 3D model Double sided tape machine This fully automatic FPC double-sided tape machine can also paste high temperature adhesives and transparent adhesives. The front of the device is the structure of the feeding part. The products to be glued are made into loops and enter from the front side, then to the partial tape. There are two taping modules. The back tape machine is used to tape the bottom. The structure of glue is quite complicated. Its principle is similar to the labeling machine, but there is an additional cutting part, that is, after applying the tape, it needs to be cut out. After cutting, the tape is applied to the product and then glued again. After pasting the front and back tape, enter the back into a cutting station, and the finished product is cut one by one, this is flexible cable FPC double-sided tape, stick the FPC cable on both sides. Non-standard fully automatic double-sided tape gluing machines, machinery and equipment. Industrial use: Equipment Design software: SolidWorks Version/edit:SW2012 file format:Sldprt Sldasm
