industrial 3D model Cigarette rolling machine

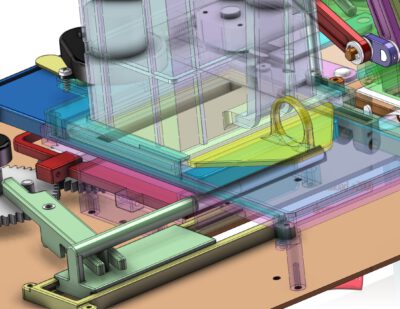

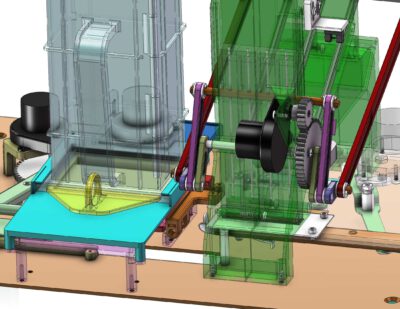

    This is industrial 3D model Cigarette rolling machine Drawing of a small-sized fully automatic cigarette rolling mechanism. This device is a cigarette cutting machine, divided into 3 mechanisms: tube pushing mechanism, cut cigarette feeding and pressing mechanism and cut cigarette feeding mechanism bottom. First, you put the entire empty pipe box into the green box, put the cut cigarettes into the glass box, turn on the start button, the cigarettes will automatically fall one by one and push them to the loaded cigarette loading area. cut and clamp the tubes and then cut the cigarette. The motor of the feeding and pressing mechanism starts to rotate, driving the crank connecting rod mechanism to push the cut cigarette diagonally down and then press down on the cigarette release port, then cut cigarette below The cigarette feeding mechanism cuts off the excess tobacco and puts it into the pipe, pushes it back and forth once, and pushes it out to complete the cigarette. This mechanism adopts motor control, flexible use, ingenious structure, etc. Industrial use: Equipment Design software: SolidWorks Version/Edit:SW2013 file format:step(stp) Sldprt Sldasm
