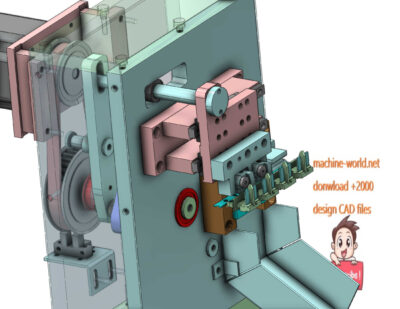

This is industrial 3D model Cam mechanism for removing parts This mechanism uses a pure cam structure design and is controlled by a servo motor. It is very stable and suitable for places where parts are automatically unloaded. The cam is perfectly matched to carry out dispensing, parts unloading and other operations. It does not require a complex electronic control system. It only has one servo motor. The drive motor rotates continuously to complete the entire process. Stable and durable cam mechanism, very popular for performing complex motion trajectories and joint structural operations.
Industrial use: Equipment
Design software: SolidWorks 2012
file format: step(stp)
