industrial 3D model Box sealing labeling machine

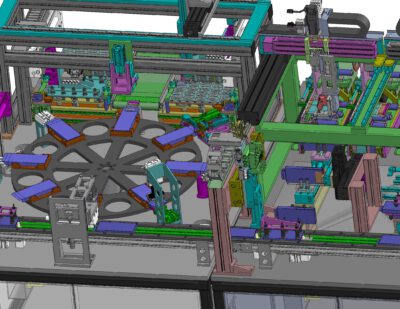

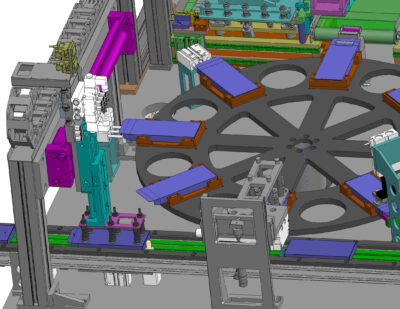

This is industrial 3D model Box sealing labeling machine Working Principle: Automatic rebate: 1. Manually or machine places the box on the assembly line 2. The box is transported to the picking point and the picking module picks the box up and puts it on the turntable index table 3. Cylinder Place the box Positioning, the suction cup sucks the box tightly 4. The cylinder tightly pushes the accessories inside the box 5. The module automatically puts a large label on the box 6. The module automatically seals the box folding the box 7. Tear off the paper small centrifuge on the large label 8. Paste the small lip of the large label on the box 9. Module to automatically unload the box onto the assembly line 10. Automatically label stations when it flows out of the assembly line box: 1. The box is transferred into this station from the previous station along with the assembly line. 2. The box is transported to the picking point and the picking module will pick up the box and place it on the upper box rotation module 3. The upper box rotation module will rotate the box 90 degrees along the width and will need label the paper side Up 4. The box moving module places the moved box onto the box moving positioning module 5 . The box moving positioning module will take the box to the labeling position and complete the side labeling after positioning 6. The bottom rotation module will Clip out the carton and the box is rotated 90 degrees along the length and the bottom surface is glued with the barcode side facing up. 7. After the rotation is completed, the box is clamped by another module and moved to the labeling position, and the labeling unit will come to apply the barcode on it. 90 degrees along the length direction. Then put it into the lower case rotation module 9. The lower case rotation module takes the case and rotates it 90 degrees again, and restores the posture when the case is loaded. 11. The box flows out of the terminal box along with the assembly line Industrial use: Equipment Design software: SolidWorks Version/edit:2016 file format:Sldprt Sldasm
