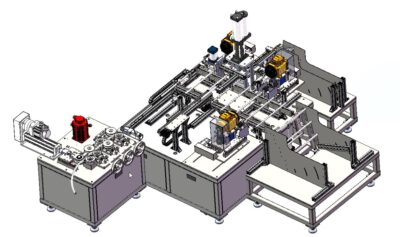

industrial 3D model Bending device for aluminum part of tent skeleton

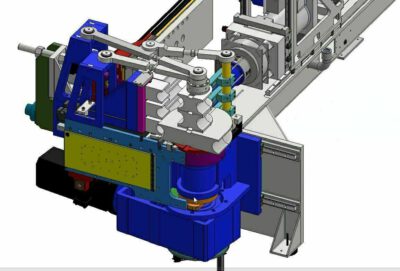

    This industrial 3D model is bending device for aluminum part of tent skeleton, including 3D drawing file, 2D engineering drawing, BOM board, program and IO point. The design of this machine adopts automatic feeding of product accessories, compatible with aluminum tubes of different lengths, feeding and chamfering from round tubes, automatic mandrel feeding, pressure riveting assembly , mandrel chamfering, automatic feed of bend tube, bend arc It can be freely adjusted by servo motor and suitable for different radian processing.
    Industry use:Equipment
    3D model Design software: SolidWorks
    3D model Version/edit:2020 [editable, including parameters]
    3D model File format:Sldprt Sldasm SLDDRW
