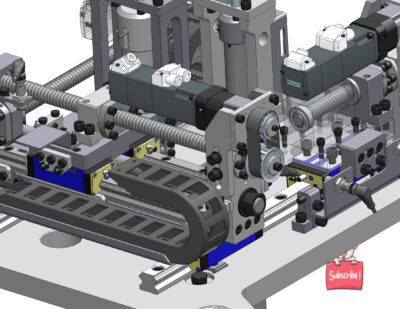

This is industrial 3D model Automotive industry screw shifting mechanism Moving slide assembly The mechanism is: double servo motor screw rods are arranged in a cross shape, so that any position in the XY direction of the slide can be reached. The measuring sensor is placed under the sliding table, and the flexible pipe position is placed in the corresponding position on both sides to achieve accurate thickness measurement, and the position can be changed arbitrarily.
Industrial use: Equipment
Design software: SolidWorks 2018
file format:Sldprt Sldasm
