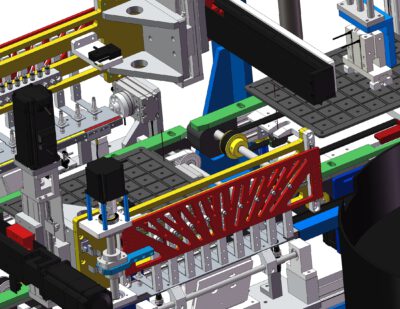

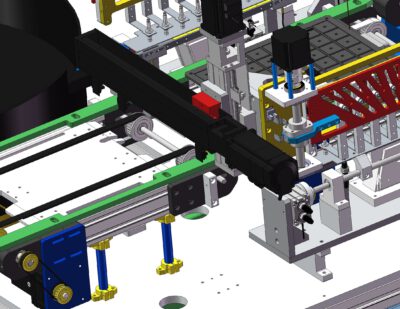

industrial 3D model Automatic assembly sorting machine


    This is industrial 3D model Automatic assembly sorting machine Fully automatic assembly transfer machine includes drive motor, reversing cylinder, cylinder holder, drive shaft, main frame body, installation shaft, drive belt, transport roller, roller holder rotating, connecting plate, transmission gear, joint bearing and reversing hinge, the drive motor is installed on the bottom of the main frame body, the front end of the reversing cylinder is connected to the reversing hinge on the top Through the joint bearing, the rear end is fixed on the cylinder holder, the cylinder holder is connected to the main frame body, and the drive shaft is fixed on the main frame through bearings. On the body, transmission gear and the nylon roller is connected to the drive shaft, the transport roller is installed on the rotating roller bracket through the installation shaft, the roller rotating bracket is installed on the connecting plate, and the connecting plate is connected on the frame body main. Simple and reasonable structure, excellent effect in practical use, no need for other complicated mechanisms and original parts, stable mechanical performance, low production cost, fast transmission speed , can complete multi-channel classification and transmission. Industrial use: Equipment Design software: SolidWorks Version/edit:2014 file format:Sldprt Sldasm
