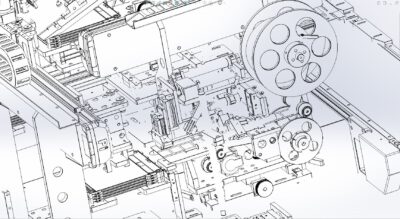

3D Insulation film barcode PET battery film laminating machine

    $150

    This is 3D Insulation film barcode PET battery film laminating machine This device is an all-in-one device for PET tape labeling machine and soft pack battery labeling machine. Applicable products are: lithium batteries, polymer batteries, Film pasting, labeling and barcodes of various types of soft pack power batteries, etc., the equipment mainly applies film to paste on the battery surface through the film feeder, also can be used in the packaging industry because it is a standard set of mechanisms and is also very stable. When the battery enters from the conveyor belt, the battery operator will pick up the product and place it on the secondary positioning slide of the film application station, then the slide module at the bottom will move the battery to the film application position, and then start to peel off the film and slide the Group table mold out to roll and compress while pasting. This type of laminating machine basically has no air bubbles when pasting, the pasting effect is very good, and the membrane is fast. The film pasting position is one film roll, the product is fixed on the positioning seat, and the module controller moves to the film application position, then the film application machine applies the film to the battery surface first, and the module is moved out in when walking and rolling. After applying the film, the processing robot will take the battery to another station to apply labels and barcodes. Before pasting here, an aluminum shell will be installed in the middle of the battery, this shell is also created by the operator taking and installing the battery module, then the operator taking the battery module to label, and then rotate and flip over for battery module assembly and other working processes. Main technical parameters of the labeling machine: type specifications Overall size of the machine: 3850*1720*1700MM (L*W*H) input voltage: AC—220V 50Hz or AC—380V 50Hz optional Machine maximum capacity: 0.5KW (at 220V ) Input air source pressure: 0.4-0.6 Mpa Air consumption: 1.5 L / min Production efficiency (C/T ): ≤3.0 S/one device Loading speed: ≥95% Industrial use:Mechanical Equipment Design software: SolidWorks 2012 file format:Sldprt Sldasm
